Colorable 40W LED ceiling light board module

Basic Info

Model No.: DY40

LED Light Source: Piranha

Emitting Color: Pure White, Natural White

1 LED Power: 0.3-0.5W

Power: 30W

LED Chips: Osram

Waterproof: Not Waterproof

Chip Material: AlGaInP

LED Type: SMD 2835

Luminous Flux(lm): 4415.3 Lm

Size: Round 280*1.2mm

Ra: 88

Additional Info

Packaging: L185*W165*H46mm, Single gross weight: 224 g

Productivity: 500

Brand: isourceled

Transportation: Ocean,Land,Air

Place of Origin: shenzhen

Supply Ability: 20000 One

Certificate: CE, RoHS, FCC,CCC,PSE

Port: Shekou,Yantian

Product Description

The 40W color palette light module is a circular whole block. It belongs to the color modulation module series. It can be adjusted in three grades. The net weight of the 24W light board module is 224 G, the luminous flux is 4415.3 lm, the luminous efficiency is 108.8 lm/w, and the ceiling light board It is a 1.25mm thick aluminum substrate with a size of 280*1.2mm. It belongs to the ceiling lamp. The product material is indispensable in the panel lamp. It consists of 420 class LED lamp beads. Large area of lamp bead coverage, positive white light dimming , no flash screen, ceiling lamp shell and 40W light board module freely assembled together to create their own personality style products.

Shenzhen Dianjiang lighting co., LTD., Perfect advanced automated production equipment, strong r & d team, scientific and perfect quality, Specializing in the production of led modules, ceiling light Led module, ceiling lights, uvc light, uv lamp, uv sterilizer lamp, uv germicidal lamp, uv disinfection lamp, solar street lights, led downlights, led flat panel.

Colorable 40W LED ceiling light board module video

Front view of a colorable 40W LED ceiling light board module

Product features of the colorable 24W light source module:

1. Colorable 40W LED flat light source module Board consists

    of 420 lessons of large area coverage of LED beads, white light source.

2. linear constant-current IC control, photoelectric integration, stable performance, reliable, long life.
3. Three-stage integrated circuit design, the power change rate is within ±5% when the input voltage fluctuates between 220-240vac;
    Constant power over voltage current protection function.
4. Overtemperature protection function, IC will automatically reduce the output current to control the temperature rise of the substrate ,
    when the substrate temperature is too high.
5. Using PCT2835 patch LED bead, color rendering index is more than 80.
6. There is no EMI, through the CCC, CE, EMC, LVD, SAA, UL, FCC, ROHS certification, etc.
7. No ultraviolet , electromagnetic wave radiation.
8. The size of 40W PCB board can be customized according to customer requirements.
9. No need to drive, wiring can be, 3 years replacement, full light, no flash screen.

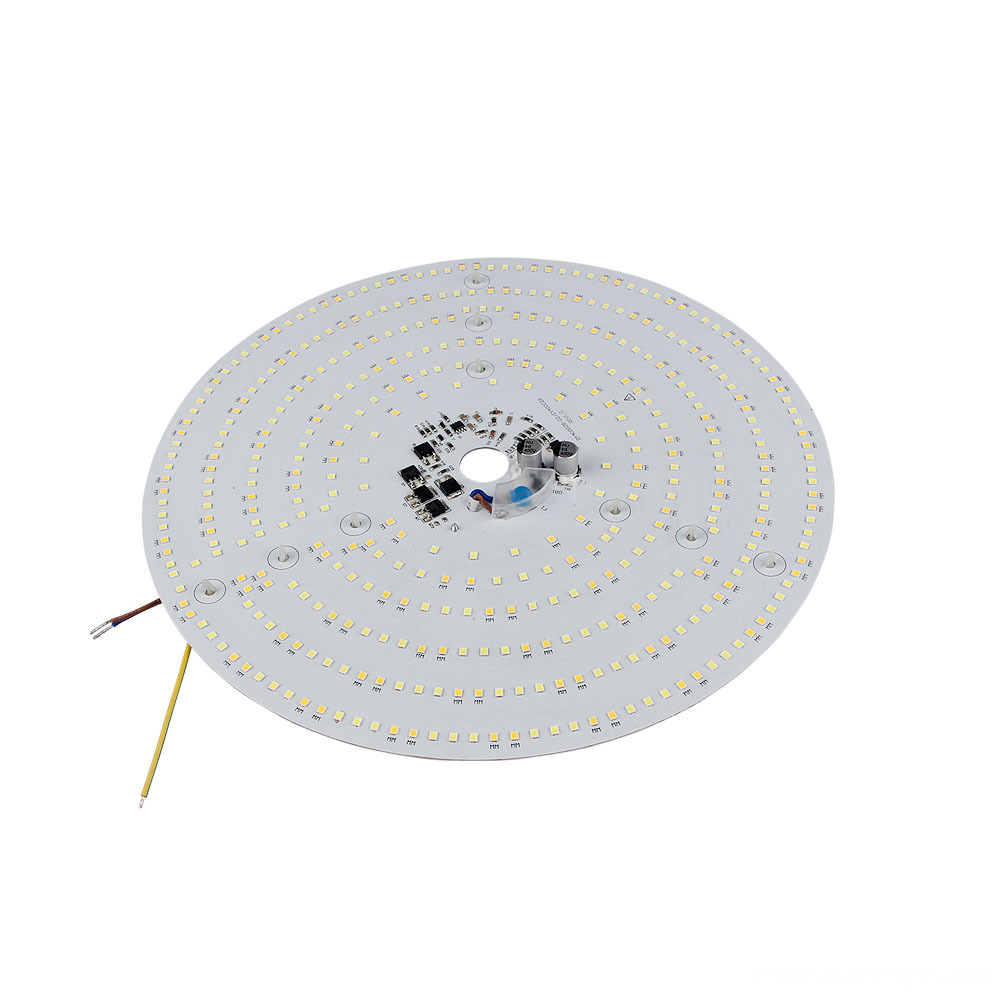

Side view of a colorable 40W LED ceiling light board module

Technical parameters of the colorable 40W light source module:

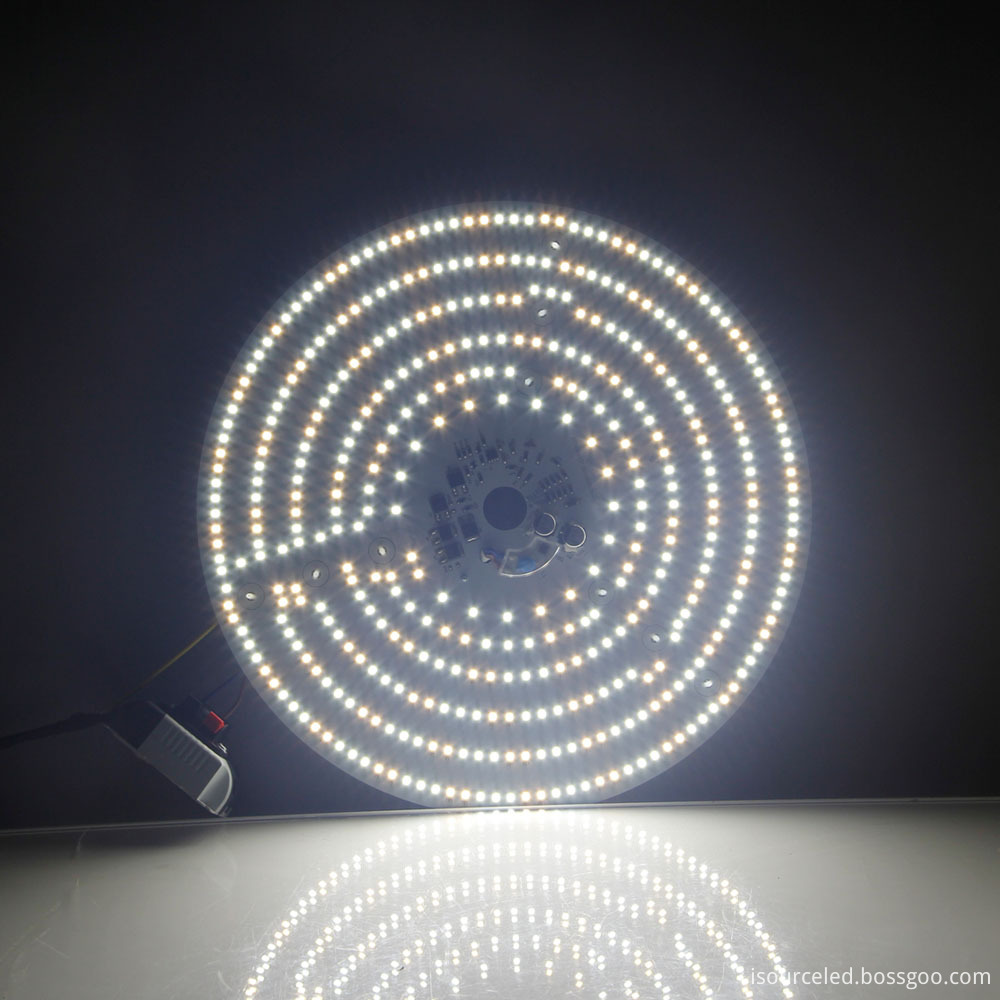

40W colorable LED module lighting effects

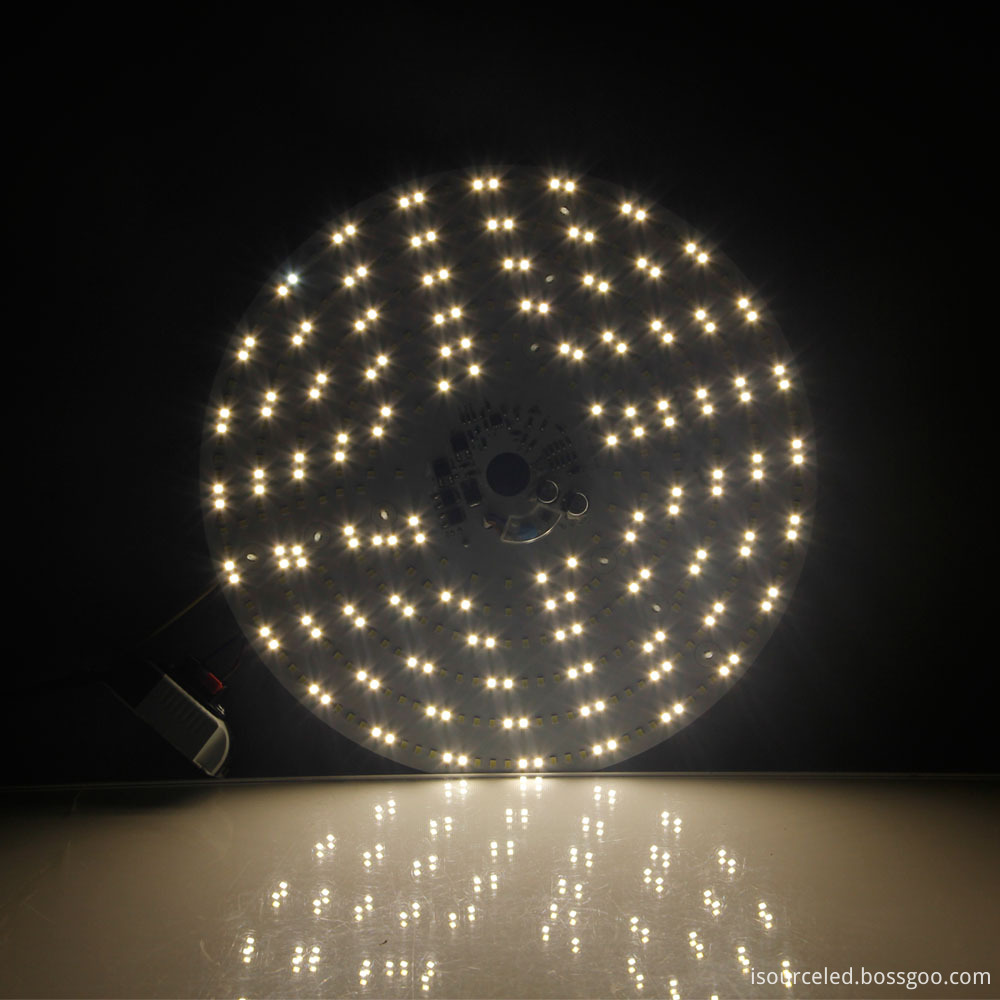

Colorable 40W ceiling light board module dimming effect diagram

Application of colorable 40W light source module:

Can be perfectly applied to ceiling lamps, panel lights, mining lamps, street lamps, LED downlights, fluorescent lamps, projection lamps, etc.

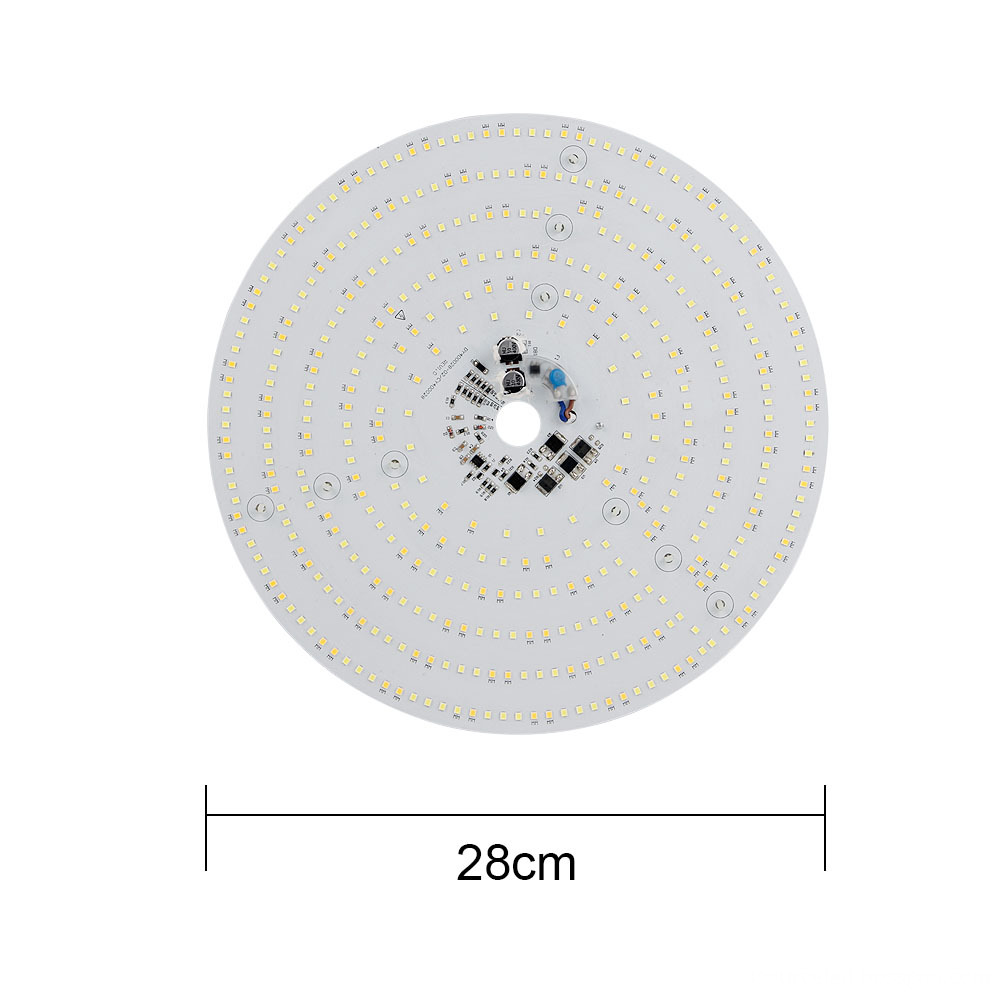

The width of the colorable 40W light source module

Colorable 24W ceiling light module installation:

1. Clean the installation surface, evenly apply the heat-conducting silicone grease to the bottom of the LED module,
   and fix the LED module and radiator with screws.
2. Attach the lens and screw it in place.
3. Ac 220V power supply is introduced for power test.
4. It is recommended to use an insulating gasket at the bottom of the screw.
