SMD driverless 220V 9W AC LED Module

Basic Info

Model No.: AF0902

LED Light Source: Piranha

Emitting Color: Warm White, Natural White

1 LED Power: <0.3W

Power: 9W

LED Chips: Osram

IP Rating: IP66

Waterproof: Not Waterproof

Chip Material: AlGaInP

LED Type: SMD 2835

Color Temperature: 2700K-4500K

Luminous Flux(lm): 983 Lm

Luminous Efficiency: 102.8 Lm/w

Color Rendering Index: 87

Input Current: 0.063A

Additional Info

Packaging: L185*W165*H46mm , Single gross weight: 38 g

Productivity: 500

Brand: isourceled

Transportation: Ocean,Land,Air

Place of Origin: shenzhen

Supply Ability: 30000 pcs/month

Certificate: CE, RoHS, FCC,CCC,PSE, ISO:9001

Port: Shekou,Yantian

Product Description

SMD driverless 220V 9W AC LED Module introduction: SMD driverless 220V 9W AC LED Module process is input current 0.062A, power: 9W, square shape, model: AF0902, square custom SMD driverless 220V 9W AC LED Module net weight 38 G, size: 140mm*70mm*1.2 Mm, consisting of 84 lessons smd 2835 LED lamp beads, life can reach more than 30,000 hours, warm white light (WW) 2700-4500k, no flash screen, 3 years replacement, luminous flux 967 lm, luminous efficiency 103.5 lm / w, SMD driverless 220V 9W AC LED Module is a 1.25mm thick aluminum substrate for ceiling lamps, panel lights and floodlights.

Shenzhen Dianjiang lighting co., LTD., Perfect advanced automated production equipment, strong r & d team, scientific and perfect quality, specializing in the production of led modules, ceiling light Led module, ceiling lights, uvc light, uv lamp, uv sterilizer lamp, uv germicidal lamp, uv disinfection lamp, solar street lights, led downlights, led flat panel.

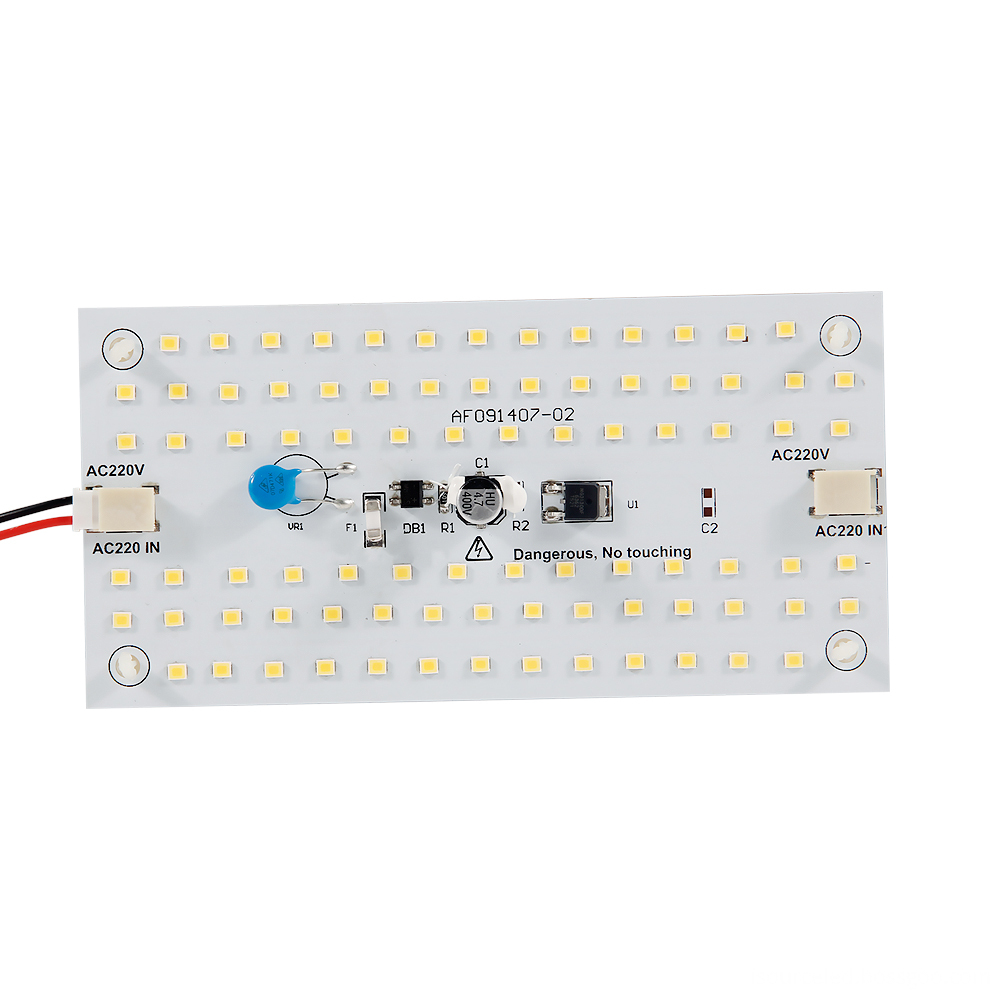

Frontal picture of SMD driverless 220V 9W AC LED Module

The module design adopts PCT2835 SMD LED lamp bead constant current technology, which has high efficiency, low heat and high constant current precision.

Technical parameters of SMD driverless 220V 9W AC LED Module:

1, energy saving.

2, life LED lights are long.

3, the applicability is good, because the single LED is small in size and can be made into any shape.

4, the response time is short.

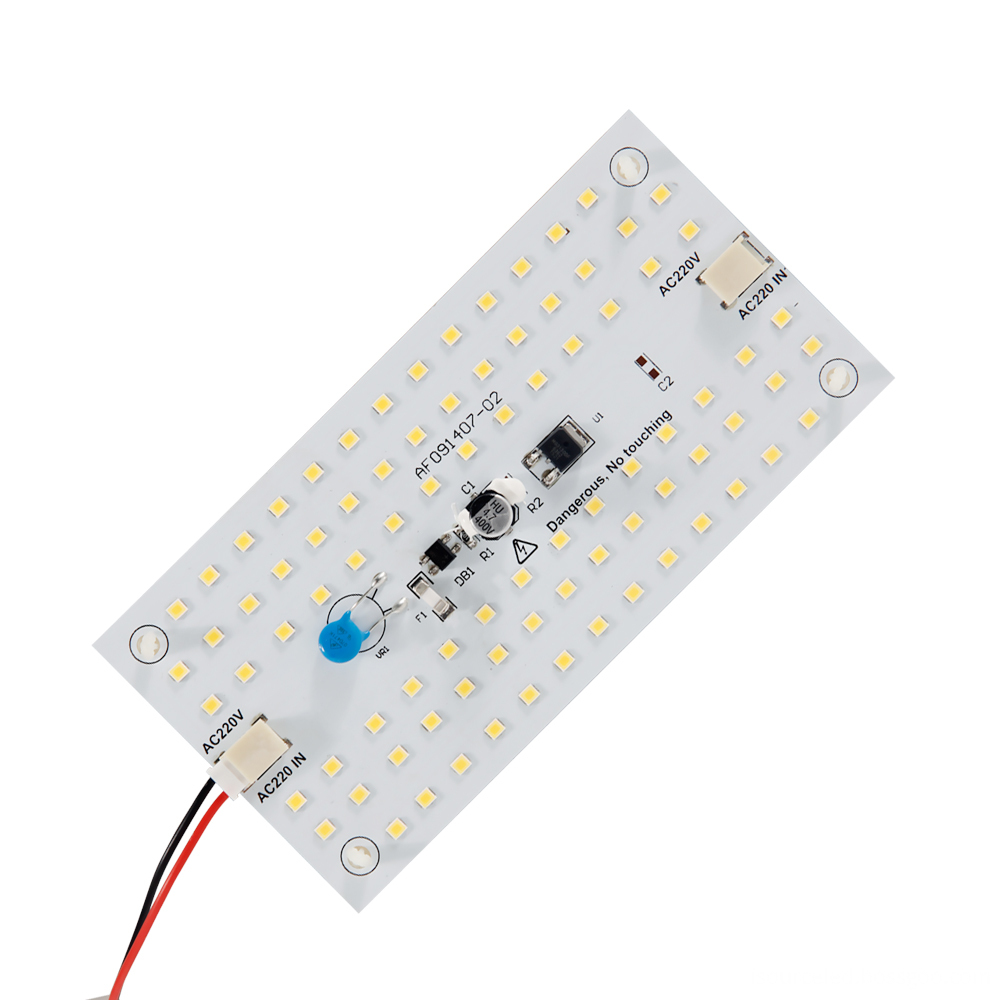

Side picture of SMD driverless 220V 9W AC LED Module

 Using PCT2835 patch LED bead, color rendering index is more than 80.

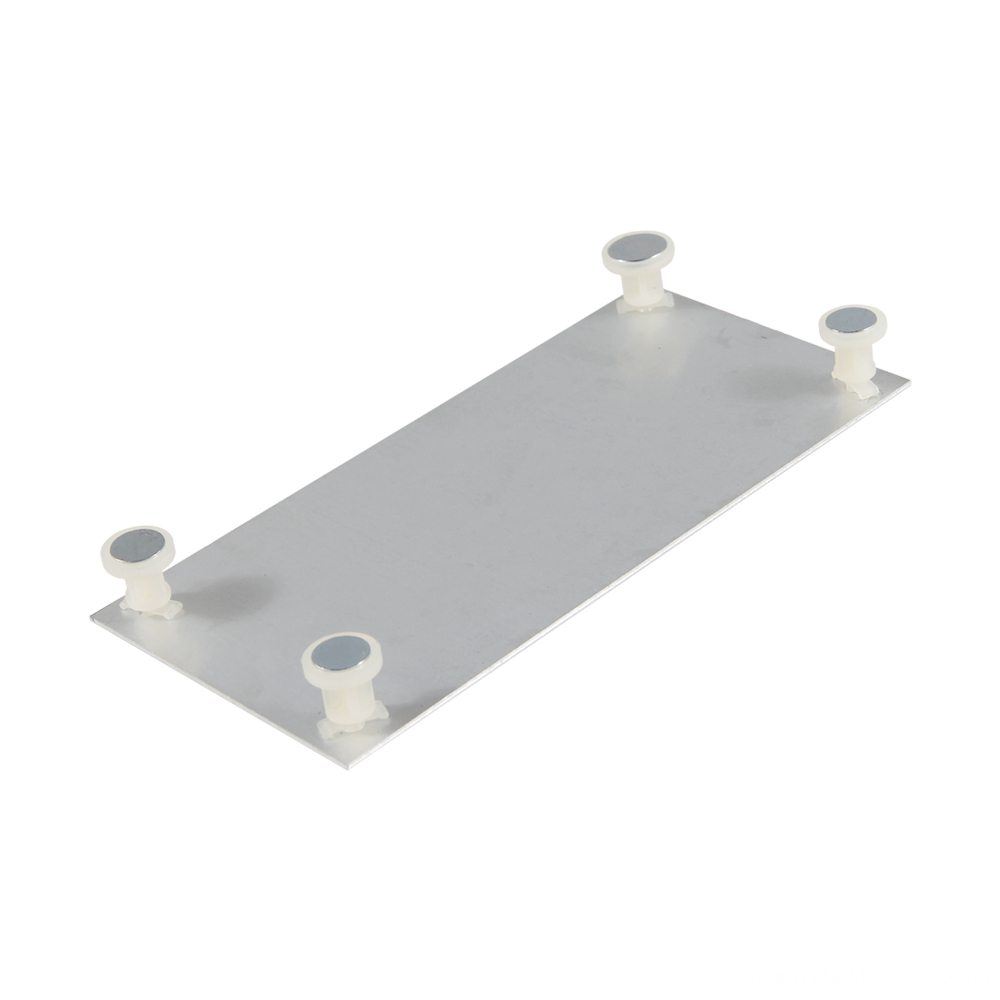

Bottom picture of SMD driverless 220V 9W AC LED Module

Aluminum substrate material, reasonable structural design, the base has mounting holes, easy to install.

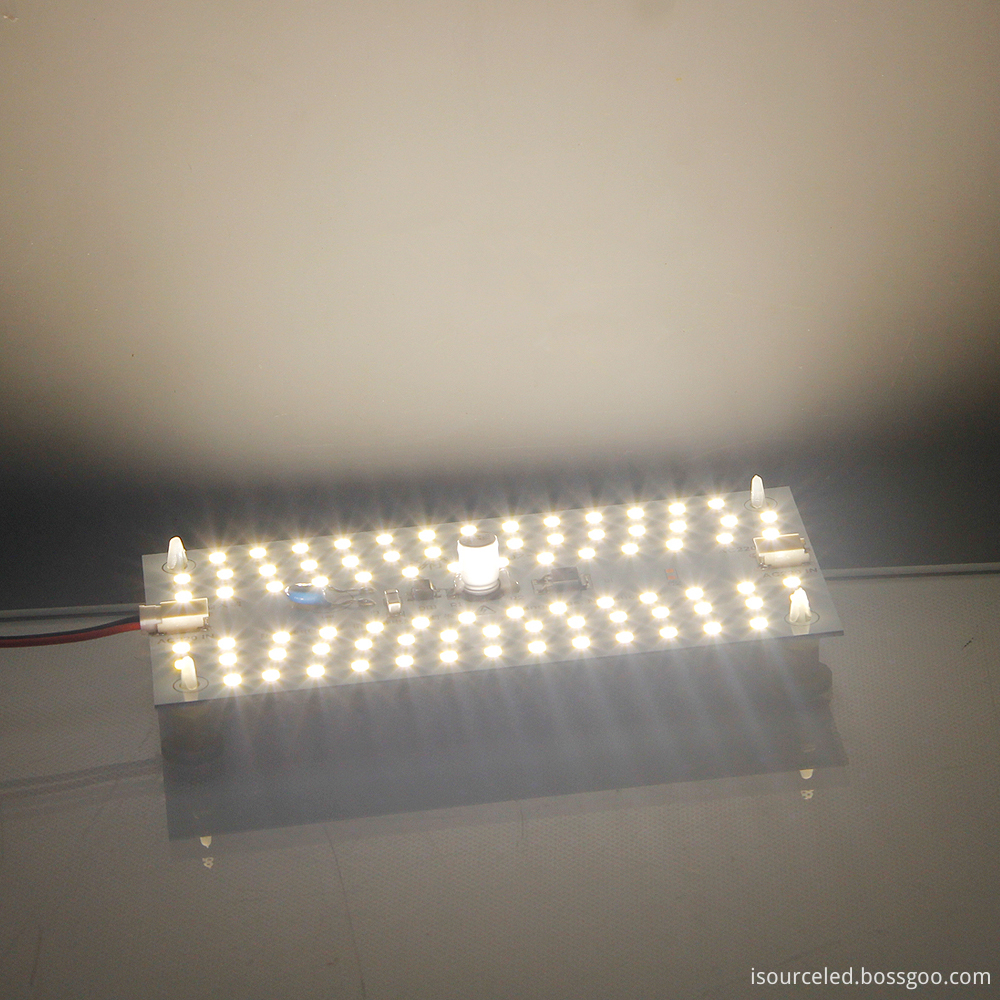

Glowing map of SMD driverless 220V 9W AC LED Module

The original packaging process is used to emit energy in the form of electrons. The product has no spot color circle, high color rendering,

 vibration resistance and good beam concentration consistency.

Product function of SMD driverless 220V 9W AC LED Module:

1. linear constant-current IC control, photoelectric integration, stable performance, reliable, long life.
2. Three-stage integrated circuit design, the power change rate is within ±5% when the input voltage fluctuates between 220-240vac;

   Constant power over voltage current protection function.
3. Overtemperature protection function, IC will automatically reduce the output current to control the temperature rise of the substrate ,

   when the substrate temperature is too high.
4. Using PCT2835 patch LED bead, color rendering index is more than 80.
5. There is no EMI, through the CCC, CE, EMC, LVD, SAA, UL, FCC, ROHS certification, etc.
6. No ultraviolet , electromagnetic wave radiation.
7. The size of 40W PCB board can be customized according to customer requirements.
8. No need to drive, wiring can be, 3 years replacement, full light, no flash screen.

our team

Isource lighting Co., Ltd It is a high-tech enterprise specializing in the development, production and sales of LED ceiling lamps and LED light sources.

Isource lighting Co., Ltd Pursue outstanding quality and illuminate colorful life

If you have any question, please feel free to contact us.
