White light source 5W LED ceiling light module

Basic Info

Model No.: GY05-01

LED Light Source: Piranha

Emitting Color: Pure White, Natural White

1 LED Power: 0.3-0.5W

Power: 5W

LED Chips: Osram

Waterproof: Not Waterproof

Chip Material: AlGaInP

Color Temperature: 2700K-6500K

LED Type: SMD 2835

Luminous Flux(lm): 533 Lm

CCT: 82

Luminous Efficiency: 95.9 Lm/w

Input Current: 0.04A

Additional Info

Packaging: L185*W165*H46mm Single gross weight: 21g

Productivity: 600

Brand: Isourceled

Transportation: Ocean,Land,Air

Place of Origin: Shen Zhen

Supply Ability: 30000 pcs/month

Certificate: CE, RoHS, FCC,CCC,PSE, ISO:9001

Port: Shekou,YANTIAN

Product Description

   The process of 5W LED light source module adopts disc type light board. The lamp board is a whole piece of 1.25MM thick type aluminum substrate. The perfect heat dissipation guarantees the service life. The 5W light source modification board is covered by 14 large-sized LED lamp beads. Rate, white light source, guarantees absolutely uniform illumination, no flash screen, very good lighting effect, 5W ceiling lamp module can be directly installed on the lamp panel of ceiling lamp and ceiling lamp in room, soft light, white, energy saving.

Shenzhen Dianjiang lighting co., LTD., Perfect advanced automated production equipment, strong r & d team, scientific and perfect quality, specializing in the production of led modules, ceiling light Led module, ceiling lights, uvc light, uv lamp, uv sterilizer lamp, uv germicidal lamp, uv disinfection lamp, solar street lights, led downlights, led flat panel.

White light source 5W ceiling light LED module video.

 Product Characteristics of 5W Light Source Board.

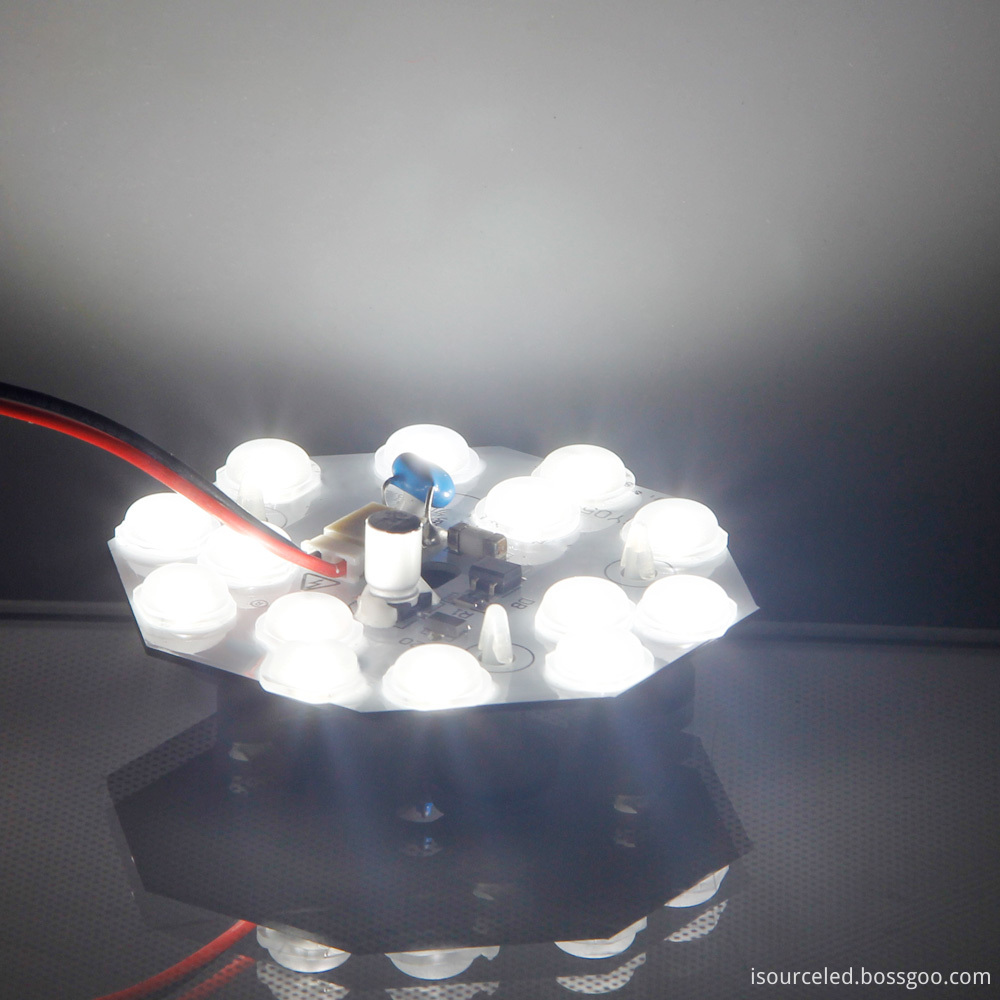

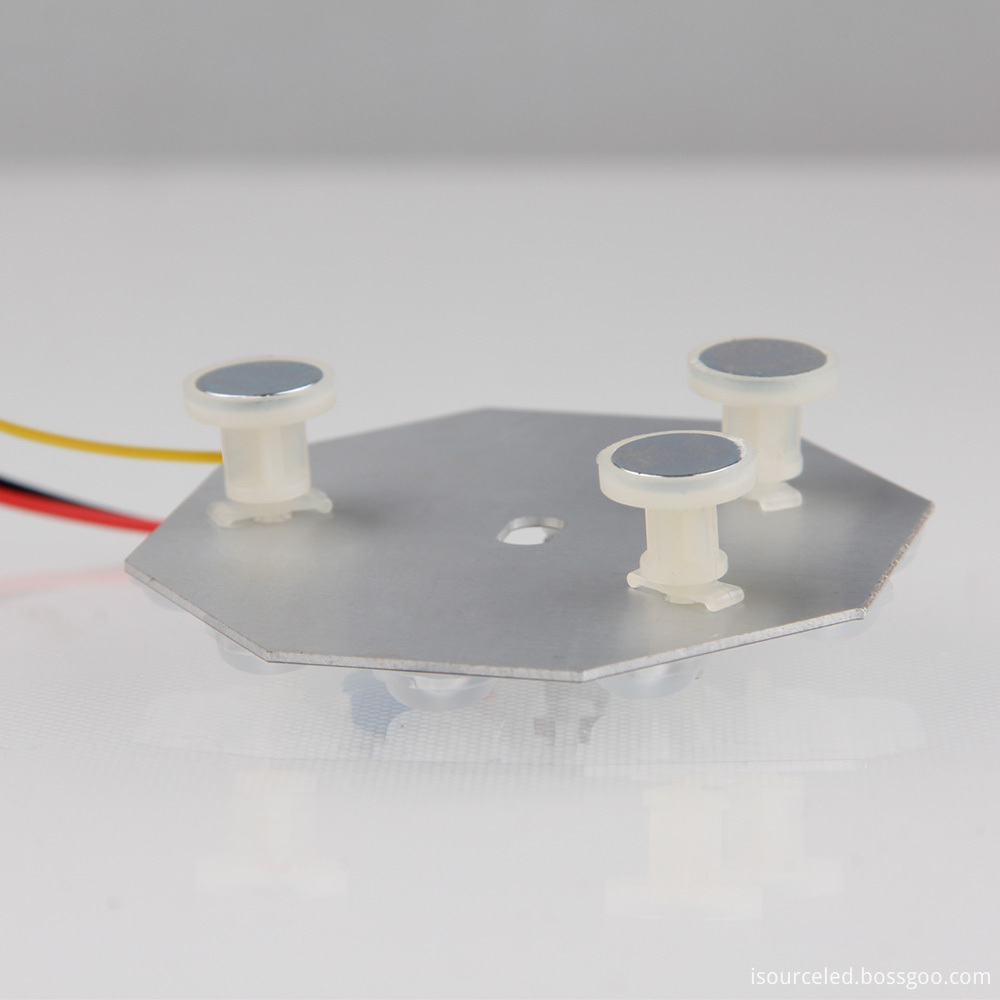

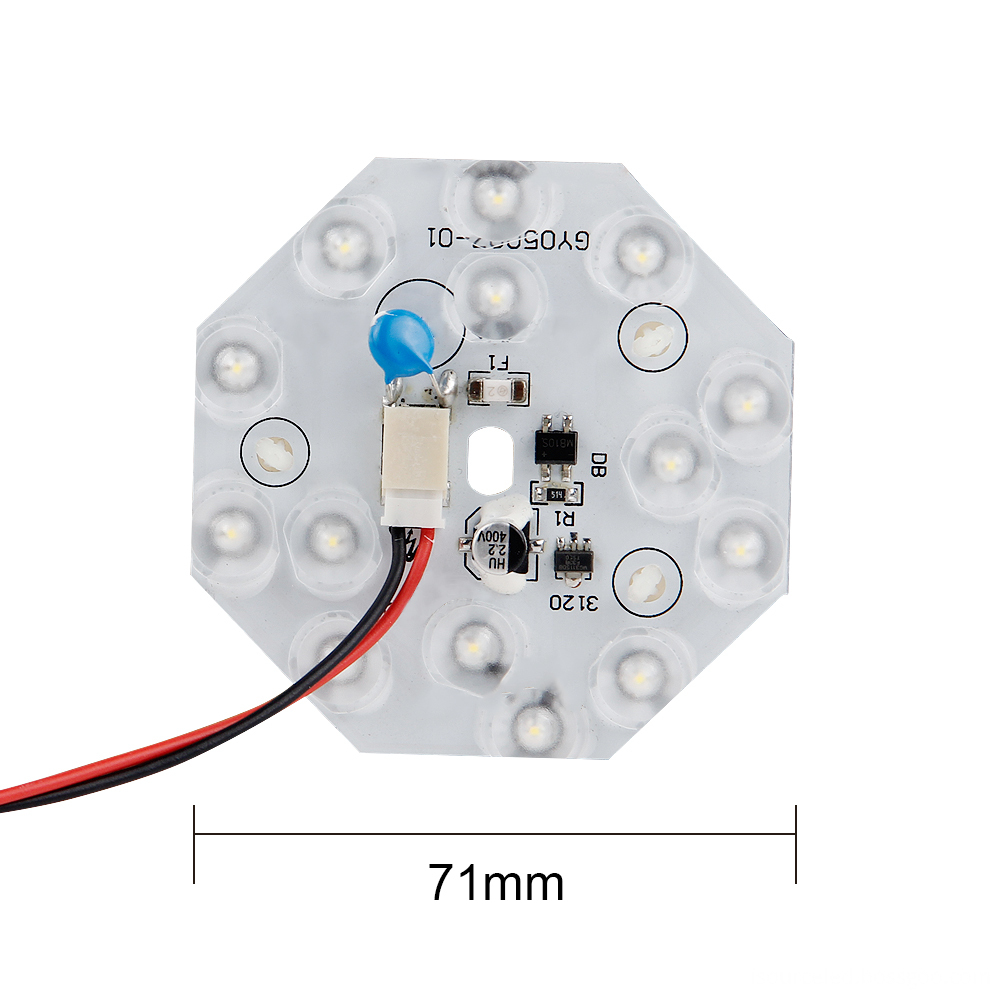

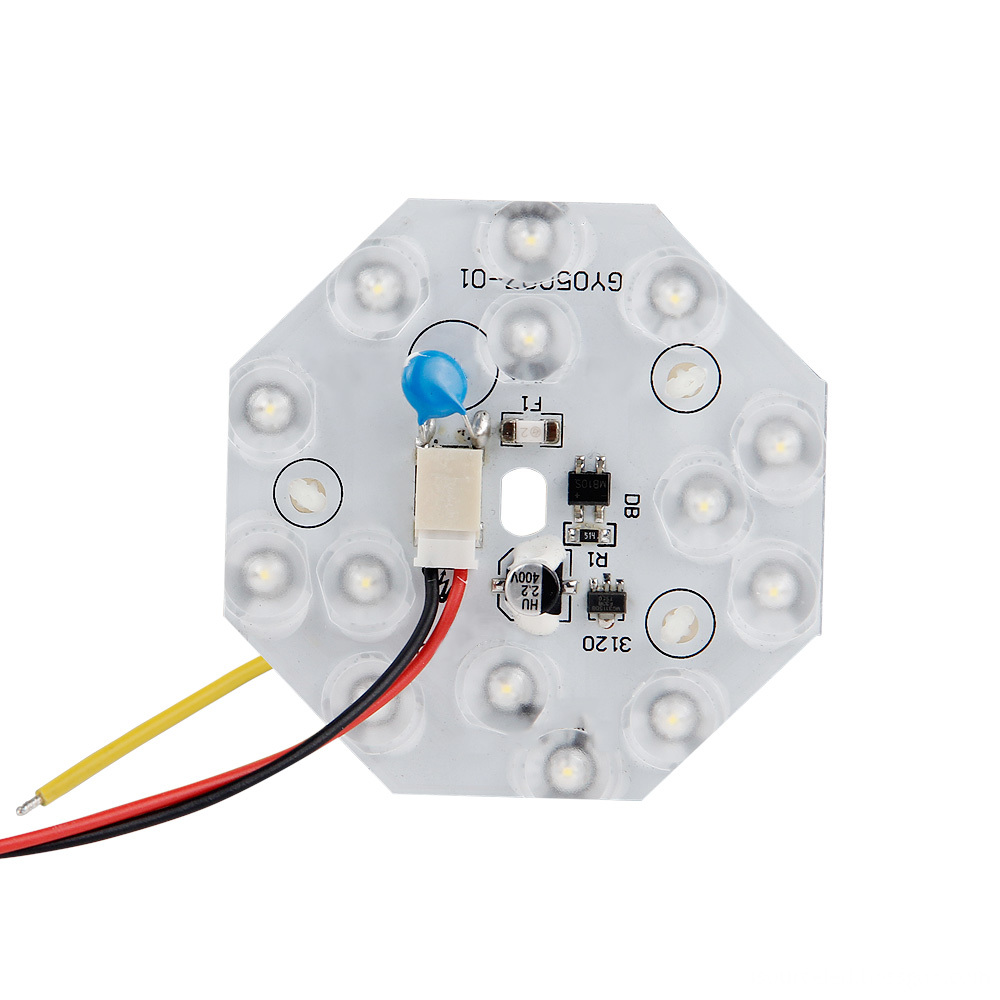

The picture above is a real shot of the 5W ceiling light LED module.

1. White Light Source 5W LED Ceiling Lamp Module 5W Light Source Modification Board consists of 14 lessons of large area coverage of LED beads, white light source.

2. linear constant-current IC control, photoelectric integration, stable performance, reliable, long life.
3. Three-stage integrated circuit design, the power change rate is within ±5% when the input voltage fluctuates between 220-240vac;
Constant power over voltage current protection function.
4. Overtemperature protection function, IC will automatically reduce the output current to control the temperature rise of the substrate ,
when the substrate temperature is too high.
5. Using PCT2835 patch LED bead, color rendering index is more than 80.
6. There is no EMI, through the CCC, CE, EMC, LVD, SAA, UL, FCC, ROHS certification, etc.
7. No ultraviolet , electromagnetic wave radiation.
8. The size of 5W PCB board can be customized according to customer requirements.
9. No need to drive, wiring can be, 3 years replacement, full light, no flash screen.

Scope of application

Application scope of 5W light source modification board:

Ceiling lamp, panel lamp, ceiling lamp, industrial and mining lamp, street lamp, LED down lamp, fluorescent lamp, projection lamp, etc.

Lighting Chart of 5W LED Light Source Board

Technical parameters of white light source 5W ceiling lamp module:

Type	GY05-01
Input Voltage	AC220-240V 50HZ
Input Current	0.04A
Power	5.3W
Power Factor	0.6
Insulation Class	ACW>2KV
Operating tempeture	-20~45℃

luminous	533 lm
luminous efficiency	75.9 lm/w
Color temperature	5000K-6500K
Color rendering index	82
Size	Φ71*75mm
Weight	21 g
Thermal Conductivity	1.0W/m.K

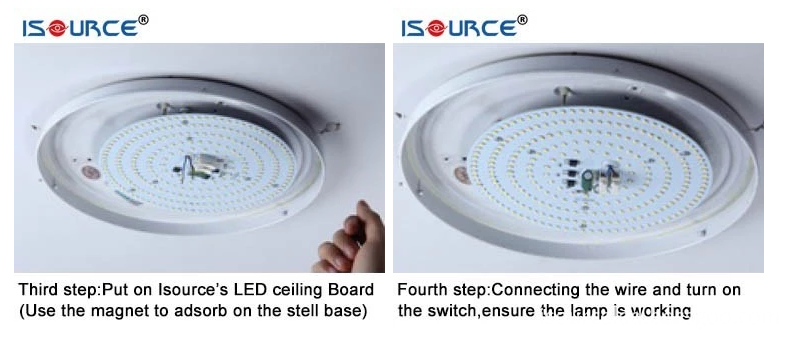

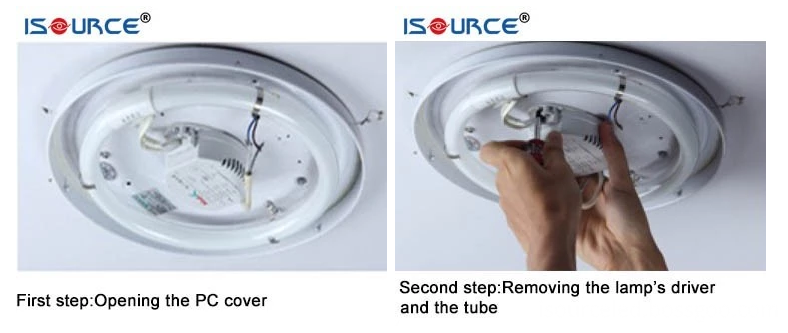

installation guide:

1. Clean the installation surface, evenly apply the heat-conducting silicone grease to the bottom of the LED module, and fix the LED module and radiator with screws.

2. Attach the lens and screw it in place.

3. Ac 220V power supply is introduced for power test.

4.  It is recommended to use an insulating gasket at the bottom of the screw.

 Use advice

1) This product has over temperature protection function, when the whole lamp temperature is too high, IC will   automatically reduce the power to control the temperature rise,

  it is suggested to choose qualified high quality  radiator.When the ambient temperature is 25℃, the Tc temperature at the temperature measurement point on the

 substrate surface should be <60℃.When the ambient temperature is 50℃, Tc<85℃.

     ISource Engineering Co., Ltd is an innovative, All of our products are qualified with UL, cULs, ETL, cETL, Energy Star, DLC, CE, ROHS, SAA certificates.

 We are committed to providing our customers with high-tech LED lightings with excellent quality and at affordable prices.
